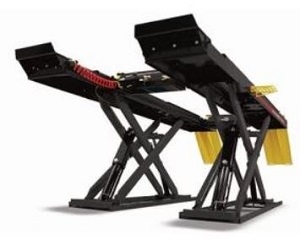

14K Short Bay Scissor Alignment Flush Mount

Description

John Bean Scissor Alignment Lifts are easy to operate, provide increased accessibility to alignment adjustment areas and are easy to load. Space saving design allows for up to five scissor lifts to fit into the same operating space as four 4-post lifts.

Features

• 14,000 lb. lifting capacity
• Open front and rear access between lifting platforms
• Low profile height with long approach ramps easing drive on
• Wide drive on runway platforms improves ease of vehicle positioning
• Recessed front turn plate pockets and full floating rear slip plates give a uniform surface for alignment
• Maintenance reduced rear slip plates use oversized encapsulated bearings, roll upward protected from environment debris
• Re-enforced scissor / base structure and runway platforms improves alignment accuracy
• Multi-position work step provides comfortable under hood access
• 4 hydraulic cylinders, cross aligned arrangement provides secure lift power and added safety
• Contained top and bottom durable steel re-enforced glide blocks deliver smooth lift operation
• Up to 18, level locking locations improves ergonomic working positions
• Approach ramps are equipped with end sliders minimizing noise and reducing floor damage
• Adjustable maximum lift height, suiting locations with low ceilings
• Safety systems include:
  • Mechanical locking with pneumatic safety lock release form control console
  • Flow sensing valves in hydraulic control circuit
  • Redundant hydraulic safety system with cross aligned hydraulic circuits
  • Integrated hydraulic fuse protection, preventing inadvertent lowering in the event of a hydraulic line leak
  • Lock pins to secure against slip plate movement when loading/unloading vehicles
  • Wheel chocks, front wheel stops and self-activating rear wheel stop preventing roll offs
• Integrated air kit allows unrestricted clear access for operation of rolling jacks
• On-board FRL; (Filter, Regulator, Lubricator) provides clean and lubricated air, reducing maintenance and protecting pneumatic
• All models have been tested and validated by an independent third party to the ANSI/ALI automotive lift standard, ALCTV-2011

Includes

• Complete 14K scissor Console / LL console
• Work Step
• 14K Steel Line Cover Kit
• 2 Rolling Jack Beams, EELS904A
• Premium Templates, EAK0289J06A
• Rollback Paddle Kit, EAK0277J28A

Warranty

One year

Product Specifications

• Hydraulic Oil Type: ISO 32 (10 weight) non-foaming and non-detergent hydraulic oil
• Hydaulic Oil Capacity: Tank Size: 4.0 gal. (15L) / Lift Capacity: 6.0 gal. (22.7L)
• Pneumatic Filtration Oil Type: Snap-on # IM6 or Equivalent
• Maximum Operating Pressure: 4600 PSI (31.7 MPa)
• General Service Wheelbase: up to 179" (4547 mm)
• Two-Wheel Alignment Wheelbase: up to 165" (4191 mm)
• Four-Wheel Alignment Wheelbase: 88" (2235 mm) - 155" (3937 mm)
• Width Between Runways: 39" (990 mm) - 40" (1016 mm)
• Minimum Lowered Height: 10" (254 mm)
• Console Dimensions: 16.37" x 12" x 45-3/4" (420 x 307 x 1162 mm)
• Maximum Arm Reach for Jack Beams: 57-1/8" (1450 mm)
• Minimum Arm Reach for Jack Beams: 35-7/16" (900 mm)
• Overall Length: 256.19" (6507 mm)
• Base Width: 32-1/4" (819 mm)
• Adapter Length Range: 36-3/4" to 43" (921 mm to 1092 mm)
• Minimum Pad Height Arm Extended: 2-9/16" (65 mm)
• Minimum Drive Over Height With Pad Arm Retracted: 1-7/8" (47.5 mm)
• Lifting Capacity: 14,000 lbs. (6,350 kg)
• Configuration: Open Front and Rear
• Overall Width: 93" (235cm)
• Overall Height: 72" (183cm)
• Maximum Lift Height: 72" (183cm)
• Lifting Time: 85 seconds
• Power Requirements: 230V, 60Hz, 1Ph, 20A, 2HP (1.5kW)
• Air Supply Requirements: 90-140 PSI @ 5-10 CFM
• Runway Width: 26" (660 mm)
