Discontinued
Superseded to CPSWV608

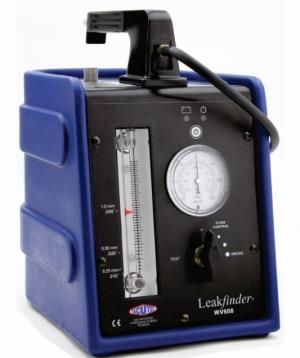

Leakfinder® Leak Detection System with Inert Gas Regulator

Item Number: CPSWV608KK - Supplier: CPS PRODUCTS INC

Description

Verify EVAP system integrities quickly, safely, and accurately with the CPSWV608KK Leakfinder® Leak Detection System approved by Kia Engineering. Find leaks that smoke alone can’t find!

The CPSWV608KK incorporates STAR Diagnostic Smoke® Technology, inside. It is the simplest and quickest way to find many vehicle system leaks.  Smoke vapor-generating leak detectors containing STAR Technology inside are the only leak detectors in the world approved by automakers (OEMs) which meet all safety standards for EVAP testing as well as for other systems. The patented UltraTraceUV® solution which is a non-contaminating dye trace will not damage vehicle sensors, gaskets or seals and will not void factory warranties. It is also the only smoke technology in the world that meets SAE INTERNATIONAL Published Papers’ safety standards recommendation for testing a vehicle’s fuel evaporative emission system. [SAE: 2007-01-1235 & 2008-01-0554].

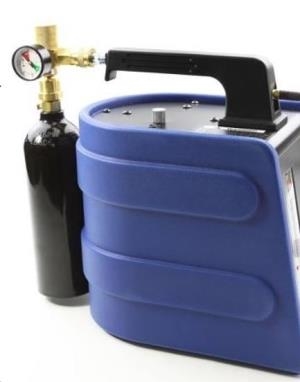

The CPSWV608KK is easy to use - just connect the provided regulator and inert gas tank assembly to the smoke machine, 12V power and you are ready to perform EVAP diagnostic leak testing. Technician’s will decrease diagnosis time and more efficiently complete repairs when using the CPSWV608KK. An important part of diagnosis is verification. When a Technician can see leakage exists when performing a leak-down test using the flow meter and/or pressure gauge a leak can quickly be located with smoke and/or UltraTraceUV® non-contaminating UV dye. Complete the repair by verifying repair performing a leak-down test using the flow meter and/or pressure gauge.

For all vehicles coming through your service bays, the CPSWV608KK is one of the best investments that can be made to improve productivity, profitability and customer satisfaction.

Features

  • Leak Detection System that locates EVAP vacuum exhaust and other leaks with Diagnostic Smoke and non-contaminating UV Dye trace.
  • Perform testing with or without smoke by positioning the Control Valve.
  • Inert Gas Regulator and Tank provided.
  • Two bottles of UltraTraceUV® (KLIP0716UV) included good for hundreds of tests.
  • Combination UV Light Kit: White light for easier smoke location, Ultraviolet (UV) light to highlight the fluorescent dye deposited and a laser pointer.
  • Eight adapters included, specified by Kia Engineering, to easily enable performing multiple diagnostic EVAP and vehicle leak tests.
  • Large easy to read accurate flow meter, indexed to three critical leak thresholds, 0.010”, 0.020”, and 0.040” leak equivalencies.
  • Combination Inches of Water Column (IWC) Pressure Gauge; highly sensitive, for low pressure monitor and leak decay testing of both positive and negative pressures.
  • When unit is turned off so does the flow into the system being tested.
  • 5-minute automatic shut-off timer. Tester will not over pressurize an EVAP or any other system.

Warranty

Limited two (2) year warranty

Product Specifications

  • Power Supply: 12V DC
  • Solution Max. Volume: 12 oz.
  • Supply Pressure: 13 in. H2O (0.032 bar)
  • Supply Volume: 10 liters per minute
  • Smoke Supply Line: 8'
  • Power Supply Line: 8'
  • Power Consumption: 15 amps
  • Weight: 10.5 lbs.
  • Dimensions: 13.5"H x 13"L x 9"W
  • Shipping Weight: 13.5 lbs.
