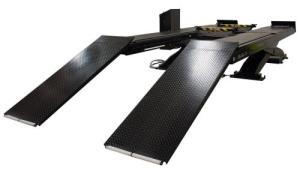

14,000 lb. Surface Mount Scissor Alignment Rack

Description

Challenger SX14 series scissor lifts are easy to operate and load. Adjustable turn plates allow for a wider range of wheelbase alignments. The SX14 features LED lighting, single locking point rear slip plates, and photo cell to ensure runway synchronization. Kit includes the lift, two rolling jacks, adjustable turn plates, and an airline kit for dual jack operation.

Features

• Extra wide runway width accommodates single and dual rear wheel vehicles
• Photo cell ensures runway synchronization
• Automatic light feature illuminates the underside of the vehicle and turns off when lift is lowered below 18”
• Maintenance-reduced rear slip plates use oversized, encapsulated bearings to protect against environment debris
• Twin hydraulic cylinders provide smooth operation
• Approach ramps are equipped with end rollers to minimize noise and reduce floor damage
• Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
• Powder coat finish provides long-lasting durability
• ALI certified

Includes

• (2) Rolling Jacks
• Turn Plates
• Airline Kit for dual jack operation

Warranty

Click here for warranty information.

Product Specifications

• Voltage (single phase std.): 208 - 240V (23 FLA)
• Speed of rise: 75 seconds
• Air Requirements: 90 - 120 psi (20 CFM
• Min. recommended bay size: 14' x 28'
• Overall width: 91.25"
• Maximum wheelbase: 183"
• Wheel Alignment - Maximum: 172.75"
• Wheel Alignment - Minimum: 70.75"
• Motor: 3HP
• Width of Runways: 25.5"
• Between Runways: 40"
• Lifting capacity: 14,000 lbs.
• Rise height: 77"
• Overall length: 265"
• Lowered Height: 10.5"
