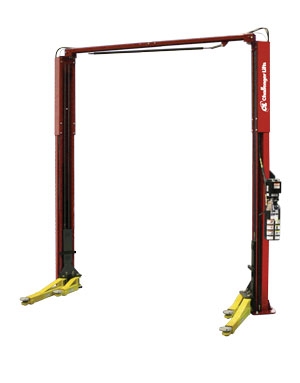

Above-Ground Two-Post Lift w/ 3-Stage Arms / Rubber Adapters

Description

Challenge Lifts' SA10 features the ability to be configured in either the symmetric or asymmetric position dependent upon the service requirements of your shop. The SA10 features 3-stage front arms that provide maximum extension and retraction ensuring safe and reliable lifting on all vehicles within rated capacity.

With adjustable height and width options, double telescoping screw pads, durable powder coat finish, plated arm restraints and pins and many other appealing features, the SA10 will accommodate the rigorous demands of a full service facility. Available in red and blue.

Features

• 3-stage front arms and 2-stage rear arms
• Adjust height and width options for installation
• Double telescoping screw pads standard
• Rubber adapters provide protection to the vehicle's painted surface and a non-slide surface.
• Mirrored "S" shaped column design
• ALI (Automotive Lift institute) certified

Includes

CLFB2208     Rubber Adapter - 1 each (4 included with the CLFSA10).

Option

CLF10315     Stack Adaptor Kit

Warranty

Click here for warranty information.

Product Specifications

• Lifting Capacity: 10,000 lbs. (4536 kg)
• Overall Height: 11' 4-1/2" / 11' 10-1/2" (3467 mm / 3620 mm)
• Voltage : 208-230 Volts
• Maximum Load Per Arm: 2,500 lbs. (1134 kg)
• Rise Height: 74-1/2" (1892 mm)
• Overall Base Width: 10' 11-1/2" / 11' 5-1/2" (3340 mm / 3493 mm)
• Drive-Thru Clearance: 88-1/2" / 94-1/2" (2400 mm / 2426 mm)
• Floor to Overhead Switch: 131-1/8" / 137-1/8" (3331 mm / 2483 mm)
• Long Arm Reach: 38-1/4" - 59" (972 mm - 1499 mm)
• Overall Height (Cylinder Extended) : 11' 10-1/2" (3620 mm)
• Short Arm Reach: 22-3/8" - 41-1/2" (568 mm - 1054 mm)
• Screw Pad Height : 4-3/8" - 6-1/2" (111 mm - 165 mm)
• Inside of Columns: 101-1/2" / 107-1/2" (2578 mm / 2731 mm)
• Motor: 2 HP / 1 Phase / 60 Hz
• Speed of Rise : 48 seconds
• Ceiling Height Required: 12' (3658 mm)
