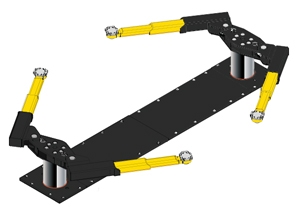

10K Wide Inground Lift

Item Number: CLFEW1020 - Supplier: CHALLENGER LIFTS INC

Description

The EW1020 10K hydraulic inground lift provides an extra-wide drive-through clearance for servicing wide-bodied and electric vehicles. Its design allows for battery-lowering out of electric vehicles and comes standard with True 3-Stage arms and double-telescoping screw pads.

Features

  • 3-Stage front and rear arms and double-telescoping screw pads
  • No Bolster to Drive Over
  • The extra width provides technicians enough clearance to remove/install battery and battery packs easily
  • Available in Red, Black, or Blue - Must specify color at time of order.

Note: Bench-mounted controls are optional.

Warranty

1 year labor, 2 years parts, 5 years structural

Product Specifications

  • Lifting Capacity*: 10,000 lbs.
  • Arm Configuration: 3-Stage Front / Rear
  • Stroke: 72"
  • Rise Height: 78"
  • Overall Width: 117-1/2"
  • Drive Thru Clearance: 88"
  • Arm Reach: Min: 20" Max:42"
  • Screw Pad Height: 4" - 6-1/8"
  • Plunger Diameter: 8-1/2"
  • Air Supply Requirements: 90 - 120 PSI
  • Standard Motor / Voltage: 2H, 208V - 230V, 1PH, 60 Hz
  • Rise Time**: 41 Seconds
  • Maximum Load Per Arm: 2,500 lbs.
  • Required Ceiling Height: 12'
  • Recommended Bay Size: 14' Wide x 24' Deep
  • *: Lift capacity ratings based on loads equally distributed on all four arms.
  • **: Lifting speed may vary depending on type, viscosity and temperature of oil as well as vehicle weight.
