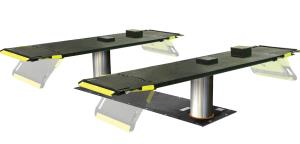

EV1020XP9 9,000 lb. Inground Lift


Item Number: CLFEV9AL02RA - Supplier: CHALLENGER LIFTS INC

Description

Challenger’s electric hydraulic cassette-style 9,000 lb. capacity inground lift with express service pad meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays.

Features

  • Drive-on style pad to aid in quick vehicle spotting for express bays
  • 8 1/2” diameter chrome pistons provide greater stability under load
  • Chrome non-breathing ram style cylinder provides for longer lift life
  • Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
  • Long bearing contact provides increased stability
  • Mechanical lock engages every 3" allowing ergonomic working height for technicians to increase productivity and minimize fatigue
  • Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
  • Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground
  • ALI/ETL Certified

Warranty

Click here for warranty information.

Product Specifications

  • Rise Height: 74-1/4" with 1.5" and 3" rubber blocks
  • Width Overall : 79.625"
  • Express Pad Min Height: 2.25" (57 mm)
  • Capacity (per arm): 4,500 lbs (2041 kg)
  • Std. Motor: 2 HP
  • Time of Full Rise: 38 s
  • Std. Voltage: 208v - 230v
  • Air Requirements: 90 - 120 psi (6.2 - 8.3 bar)
  • Rec. Bay Height: 12' (366 cm ) minimum
  • Arms: Drive-on Express Pad
  • Stroke: 68" (1727 mm)
  • Lifting Capacity: 9,000 lb. (4082 kg)
