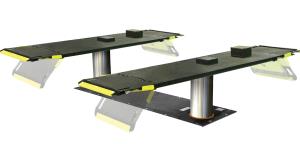

EV1020XP9-BMC-QC 9,000 lb. Inground Lift with Quick Cycle and Bench Mount Controls

---

Item Number: CLFEV9AL02QS - Supplier: CHALLENGER LIFTS INC

Description

Challenger’s electric hydraulic cassette-style 9,000 lb. capacity inground lift with express service pad meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays.

The Quick Cycle hydraulic enhancement for Challenger inground lifts saves both rise and descent time, allowing you to service more vehicles in the same amount of time.

Features

• Bench Mount Controls to boost your efficiency
• Quick Cycle technology
• Drive-on style pad to aid in quick vehicle spotting for express bays
• 8 1/2” diameter chrome pistons provide greater stability under load
• Chrome non-breathing ram style cylinder provides for longer lift life
• Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
• Long bearing contact provides increased stability
• Mechanical lock engages every 3" allowing ergonomic working height for technicians to increase productivity and minimize fatigue
• Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
• Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground
• ALI/ETL Certified

Warranty

Click here for warranty information.

Product Specifications

• Rise Height: 74-1/4" with 1.5" and 3" rubber blocks
• Width Overall : 79.625"
• Express Pad Min Height: 2.25" (57 mm)
• Capacity (per arm): 4,500 lbs (2041 kg)
• Std. Motor: 3 HP
• Time of Full Rise: 27 s
• Std. Voltage: 208v - 230v
• Air Requirements: 90 - 120 psi (6.2 - 8.3 bar)
• Rec. Bay Height: 12' (366 cm ) minimum
• Arms: Drive-on Express Pad
• Stroke: 68" (1727 mm)
• Lifting Capacity: 9,000 lb. (4082 kg)
