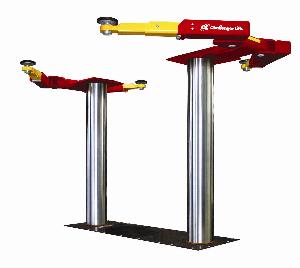

10,000 lb. EnviroLift­® Lift, Inground, 3-Stage Arms

Item Number: CLFEV1020 - Supplier: CHALLENGER LIFTS INC

Description

Challenger's electric hydraulic cassette style inground EnviroLift® meets the rigorous demands of professional service facilities. It services more vehicles with its double telescoping screw pads, 3-stage arms and wide drive-thru. It protects your investment and the environment with its fully contained polymer housing made from recycled plastic (No EPA concerns). It also creates a professional showroom style appearance with its open aesthetically pleasing look.

Features

  • Offset 3-stage front and rear arms safely lift both symmetrically and asymmetrically within the same service bay.
  • 87" Drive-thru accommodates wider vehicles, minimizes tire pinching and provides easy drive-on / drive-thru.
  • Double telescoping screw pads  minimize the need for truck adapters by meeting a wider range of vehicle manufacturer designated pick up points.
  • 50% more bearing contact than the competition provides increased stability.
  • Mechanical lock engages every 3", allowing technicians to work at their ergonomic working height to increase productivity and minimize fatigue.
  • Stainless steel air lock release cylinder prevents car lift from rust associated with condensation.
  • Chrome non-breathing ram style cylinder minimizes water intake and other contamination.
  • 8-1/2" Diameter chrome pistons provides car lift with greater stability under load.
  • Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contamination from entering into bearings.

Benefits – Environmental

  • The fully contained, sealed polymer housing (made from recycled plastic) minimizes risk of hydraulic fluid seeping into the ground as associated with low pressure in-ground lifts.

Includes

  • CLF10315   Stack Adapter Extension Kit
  • CLF10318   Four Frame Engaging Truck Adapters

Note: Frame engaging adapters (CLF10314 or CLF10318) are required when lifting vehicles with frame construction.

Warranty

Click here for warranty information.

Product Specifications

  • Lifting Capacity: 10,000 lb. (4536 kg)
  • Stroke: 68" (1727 mm)
  • Rise Height: 75-1/4" (1908 mm)
  • Width Overall : 110" (2794 mm)
  • Drive-Thru Clearance: 87" (2210 mm)
  • Reach (arm minimum): 19-5/8" (498 mm)
  • Reach (arm maximum): 42" (1067 mm)
  • Rubber pad Adapter (minimum): 3-7/8" (98 mm)
  • Rubber Pad Adapter (maximum): 7-1/8" (181 mm)
  • Adjustable Adapter Height (with Medium Extensions): 6-7/8" -10-1/8" (178 mm - 257 mm)
  • Adjustable Adapter Height (with High Extensions): 9-7/8" - 13-1/8" (251 mm - 333 mm)
  • Capacity (per arm): 2,500 lb. (1134 kg)
  • Motor: 2 hp
  • Voltage (Single Phase Std.): 208V - 230V
  • Speed of Rise: 40 seconds
  • Air Requirements: 75 - 125 p.s.i.
  • Recommended Ceiling Height: 79" (2007mm)
