10,000 lb. Versymmetric 2-Post Lift

Item Number: CLFE10 - Supplier: CHALLENGER LIFTS INC

Description

The E10 two post lift features Challenger’s innovative Versymmetric® Technology, providing technicians the versatility to lift vehicles both symmetrically and asymmetrically within the same service bay. This exclusive technology used in our 2 post car lifts facilitates increased efficiency and revenue potential.

With double telescoping screw pads, durable powder coat finish, plated arm restraints and pins and many other appealing features, the E10 two post lift will accommodate the rigorous demands of a full service facility – and afford room to grow with its competitive price. Available in red and blue only.

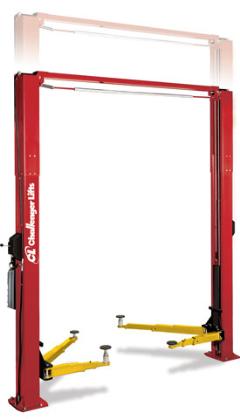

NOTE: Image at left shows lift with 2' height extension option.

Features

  • Versymmetric® 3-stage-front arms safely lift both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
  • Double Telescoping Screw Pads minimizes the need for truck adapters by meeting a wider range of OEM recommended pick up points
  • 11´ 11-7/8" standard height allows lift to be placed in service bay with 12´ ceiling
  • Single point mechanical lock release allows technician to disengage both columns simultaneously
  • Padded overhead shut off system prevents vehicle damage from being raised too high
  • Premium powder coat finish provides long lasting durable finish
  • Rubber foot pads minimize stress to vehicles with delicate undercoating
  • Rubber door guards provide added security against vehicle door damage
  • Premium powder coat finish provides long-lasting durability
  • Plated Arm Restraints and Arm Pins inhibit rust and provide long-lasting durability
  • ALI / ETL certified

Accessories

CLF10313 Pair of 6” Stack Adapter Extensions for 10K and 12K capacity two post automotive lifts
CLF10314 Pair of frame engaging truck adapters for 10,000, 12,000, 15,000, and 18,000 two post automotive lifts
CLF10315 Stack Adapter Kit for 10,000 and 12,000 lb. two post automotive lifts
CLF10316 Organizer Rack to hold Stack Adapter Extensions for two post automotive lifts
CLF10318 Set of 4 frame engaging truck adapters for 10,000, 12,000, 15,000 and 18,000 two post automotive lifts
CLFB10264 Air and Electric workstation with filter, lubricator, and regulator for two post car and truck lifts
CLFE10EH2 2' Column Height Extensions accomodate higher profile vehicles. Includes (2) height extensions, hose extension kit and new cables.

Warranty

Two years on parts, one year on labor from the date of installation.





Product Specifications

  • Lifting Capacity: 10,000 lbs. (4536 kg)
  • Rear Arm Reach: 38 1/4" - 55 3/8" (971 mm - 1407 mm)
  • Overall Height: 11' 11-7/8" (3655 mm)
  • Floor to Overhead Switch: 11' 5" (3482 mm)
  • Ceiling Height Required: 12' (3658 mm)
  • Max Load per Arm: 2,500 lbs. (1134 kg)
  • Drive Thru Clearance: 98 3/8" (2499 mm)
  • Voltage: 208V - 230V
  • Overall Height w/2' Extension: 13' 11-7/8" (4265 mm)
  • Overall Width: 10' 11-3/4" (3347 mm)
  • Rise Height: 75-3/4" (1924 mm)
  • Front Arm Reach: 21 3/4" - 39 1/4" (553 mm - 998 mm)
  • Screw Pad Height: Adj 4 1/8" - 7 1/4" (105 mm - 184 mm)
  • Motor: 2 HP, 1 PH, 60 Hz
  • Speed of Rise: 50 Seconds
  • Inside of Columns: 110 1/4" (2800 mm )
  • Floor to Overhead Switch w/2' Extension: 13' 5" (4092 mm)
  • Ceiling Height Required w/ 2' Extension: 14' (4268 mm)
