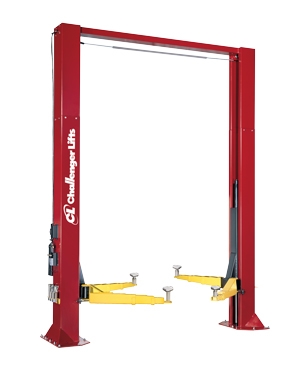

16,000 lb. Heavy-Duty 2-Post Symmetric Lift with 3-stage Arms

Item Number: CLFCL16-0-3S - Supplier: CHALLENGER LIFTS INC

Description

Challenger's new 16,000 lb. capacity heavy-duty cargo vehicle 2-post lift comes standard with 3-stage front and 3-stage rear arms. This new heavy-duty 2-post lift safely and adequately accommodates any cargo van or transportation van/bus with step sides or lower profile ground effects. Lift model comes complete with all necessary adapters to lift vehicles and has optional adapters specific for certain cargo-carrying vans.

Features and Benefits

  • 3-stage front and 3-stage rear arms give extended reach and retraction, making it easier to lift a wider variety of cargo carrying vans.
  • The standard pad adapter is 16 percent lower than the standard 16,000 lb capacity 2-post lift to accommodate lower profile cargo vans.
  • Single point air actuated lock release allows the technician to disengage locks in both columns simultaneously.
  • The oversized steel pulley reduces stress on the equalization system and provides increased durability.
  • 60" lifting carriage helps to give an equal spread of weight which can prevent premature column wear.
  • Padded overhead shut off system prevents vehicle damage should a vehicle come in contact with the overhead shutoff bar.
  • Optional 3 phase electrical is also available. Specify at time of order.

Available Color Options

  • Red, Blue, Black - specify color choice at time of order.

Warranty

Click here for warranty information.

Product Specifications

  • Lifting Capacity: 16,000 lbs.
  • Lift Configuration: Symmetric
  • Arm Configuration: 3-Stage Front/Rear
  • Max. Load Per Arm: 4,000 lbs.
  • Min. Rise Height: 75.5"
  • Max. Rise Height (w/ Stack Adapters): 81.5"
  • Overall Height Options: 162" / 168" / 174"
  • Overall Width Options: 154.75"/ 160.75"/ 166.75"
  • Drive-Thru Clearance: 104.25" / 110.25" / 116.25"
  • Floor to Overhead Switch: 155" / 161" / 167"
  • Min. Arm Reach: 36.625"
  • Max. Arm Reach: 75"
  • Min. Screw Pad Height: 4.75"
  • Max. Screw Pad Height: 6.5"
  • Between Columns: 120" / 126" / 132"
  • Motor / Voltage: 3HP, 1Ph, 60Hz, 208-230v
  • Air Supply Requirements: 90-120 psi
  • Rise Time: 62s
  • Min. Ceiling Heights Required: 13'8" / 14'2" / 14'8"
  • ALI Certified: Yes
