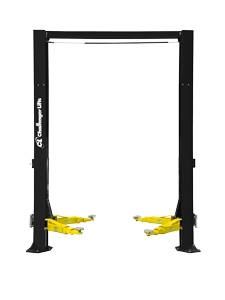

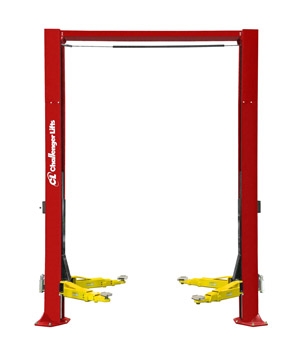

12K Heavy Duty Adjustable Wide Two Post Lift, DPC, QC with 2' Height Extension

Item Number: CLFCL12A2DPCQC - Supplier: CHALLENGER LIFTS INC

NOTE:  To lift electric vehicles (EVs), optional Electric Vehicle Footpad Kit, CLFTFPK, must be used.

Description

 12K Heavy Duty Adjustable Wide Two Post Lift with Dual Pendant Controls, Quick Cycle, and 2' Height Extension

Our 12,000 lbs. capacity CL12A 2-Post lift can accommodate a wide range of standard cars, trucks, vans, and SUV's within the same service bay with +6" & 12" width adjustment and optional +1' & +2' height extensions. Standard features also include 3-stage front and rear arms.

Features

  • +6” & +1’ width adjustment and 6" height adjustment
  • When using to lift Electric Vehicles for battery removal, set in the widest width for best performance
  • Dual Pendant Controls (DPC) increase safety and productivity by allowing the controls to sit within reach for minor spotting adjustments and provide an unobstructed view of lifting points.
  • Dual-point mechanical lock release system lowers lift from either column
  • QuickCycle (QC) - a larger motor and bigger pump result in a faster rise and descent speed.
  • Realize increased productivity and parts sales as a result of servicing more vehicles per bay daily.
  • Premium telescoping screw pads adjust to multiple heights minimizing the need for additional adapters
  • Premium powder coat finish provides long-lasting durability
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
  • ALI Certified

Available Color Options

  • Red, Blue, Black - specify color choice at time of order.

Includes

  • CLF10315 Truck Adapter Extension Kit

    Accessories

    • CLFTFPK    Electric Vehicle Footpad Kit - designed to give a flat lifting surface

    Warranty

    Click here for warranty information.

    Product Specifications

    • Lifting Capacity: 12,000 lbs.
    • Lift Configuration: Symmetric
    • Arm Configuration: 3-Stage, front and rear
    • Rise Height: 84 3/4" with 6" adapters
    • Overall Height: 15' 8" or 15' 2"
    • Overall Width: 11' 10", 12' 4", 12' 10"
    • Drive Thru Clearance: 103-1/2", 109-1/2", 115-1/2"
    • Floor to Overhead Switch: 15' 2" or 14' 8"
    • Arm Reach: Min: 27-1/2", Max: 59"
    • Screw Pad Height: Min: 5", Max: 12-3/8" (includes 6" stack adapter)
    • Inside Columns: 9' 6-1/2", 10' 1/2", 10' 6-1/2"
    • Standard Motor / Voltage: 2HP, 208V-230V, 60Hz, 1 Ph
    • Rise Time: 38 Seconds
    • Required Ceiling Height: 15' 9" or 15' 3"
