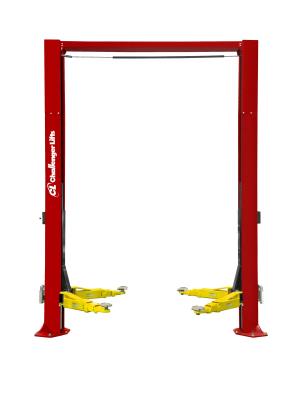

12,000 lb. 2-Post Lift with 1' Extension, Dual Pendant Controls, and Quick Cycle

---

Item Number: CLFCL121DPCQC - Supplier: CHALLENGER LIFTS INC

Description

Service more vehicles and make more money with Challenger Lifts' CL12, 12,000 lb. capacity 2-post lift. The CL12 comes standard with 3-stage front and 3-stage rear arms providing the advantage of lifting many common cars, trucks, vans and SUVs within rated capacity.

We've also added our time-tested productivity tools, including Quick Cycle Technology and Dual Pendant Controls to boost your efficiency.

Features

• 3-stage front and 3-stage rear arms accommodate a wide range of common cars, trucks, vans as well as SUVs within the same service bay
• 60″ lifting carriage design increases lift life
• Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
• Padded overhead shut off system prevents vehicle damage
• Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
• Premium powder coat finish provides long-lasting durability
• Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
• Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
• Dual pendant power controls' Up/Down power button is always within the technician's reach and provides lift operation from either column. It also enables
  expedited spotting by providing an unobstructed view of the lifting points.
• Quick Cycle hydraulic enhancement package permits full lift rise in approximately 40 seconds while lowering speed is improved to approximately 17 seconds.

Includes

• CLF10319 Truck Adapter Extension Kit

Warranty

One year labor, two years functional parts, and five years structural parts.

Product Specifications

• Lifting Capacity: 12,000 lb. (5443 kg)
• Rise Height: 84¾" (2153 mm)
• Height Overall: 14' 8" (4470 mm)
• Width Overall : 11' 10" (3607 mm)
• Drive-Thru Clearance: 103½" (2629 mm)
• Floor-Overhead Switch: 169" (4293 mm)
• Arm Reach - Minimum: 27½" (700 mm)
• Arm Reach - Maximum: 59" (1500 mm)
• Adj. Adapter Height: 5" to 12⅝" (127 mm to 320 mm)
• Adj. Adapter Height (with Medium Extensions): 8" to 9⅝" (203 mm to 244 mm)
• Adj. Adapter Height (with Hight Extensions): 11" to 12⅝" (279 mm to 320 mm)
• Inside Columns: 114½" (2908 mm)
• Motor : 3 HP
• Voltage (1 Phase Std.): 208v - 230v
• Speed of Rise: 40 Seconds
• Ceiling Height Required: 14' 9" (4496 mm)
