Discontinued

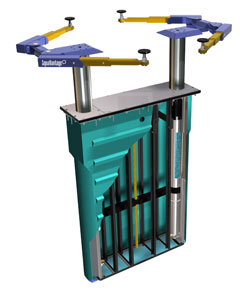

EnviroLift® with AquaVantage®

Item Number: CLFAV1020WV - Supplier: CHALLENGER LIFTS INC

Description

AV1020 series EnviroLift® with patented AquaVantage™ Technology uses compressed air and tap water instead of electrical motors and hydraulic oil, making it the leading environmentally friendly automotive lift, a realGREEN product.

Features

  • Patented AquaVantage™ Technology runs on water and air.
  • Large double walled anodized aluminum pistons provide stability, corrosion-resistance and a stunning showroom-like appearance.
  • Air actuated water control valve allows for positive ascent and descent.
  • 80" rise provides maximum head room for working underneath vehicles.
  • Versymmetric 3-stage arms lifts both symmetrically and asymmetrically to maximize service capabilities and revenue potential.
  • Double telescoping screw pads reach multiple vehicle pickup point heights reducing the need for adapters.
  • Ergonomic power control unit with pneumatic switching, integrated air pressure gauge and lockout safety feature for convenience and simple, seamless operation.

Benefits – Environmental

  • Patented AquaVantage Technology is more energy efficient and the most environmentally friendly automotive lift on the market.
  • No electric motor, no hydraulic oil and recycled polymer cassette tub provides a realGREEN, earth friendly product.
  • The fully contained, sealed polymer housing (made from recycled plastic) minimizes risk of
    hydraulic fluid seeping into the ground as associated with low pressure in-ground lifts.

Options

  • CLFCSPK    Universal Pre-Kit
  • CLFSC100AV  Cassette Lift Automatic Liquid Removal System
  • CLF10315 Truck Adapter Kit

Warranty

Two years on parts, one year on labor from the date of installation.

Product Specifications

  • Operating Pressure (air required): 200 p.s.i.
  • Rise Height: 80" (2032 mm)
  • Width Overall : 110" (2794 mm)
  • Capacity (per arm): 2,500 lbs. (1134 kg)
  • Drive-thru Clearance: 87" (2210 mm)
  • Reach (Arm minimum-maximum): 19-5/8" - 42" (498 mm - 1067 mm)
  • Rubber Pad Adapter (minimum - maximum): 3-7/8" - 7-1/8" (98 mm - 181 mm)
  • Speed of Rise: Approx. 40 Seconds
  • Recommended Ceiling Height: 84" (2134 mm) plus height of tallest vehicle
  • Lifting Capacity: 10,000 lbs. (4356 kg)
  • Stroke: 73" (1854 mm)
