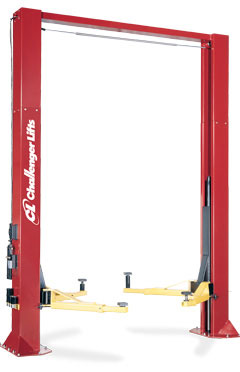

15,000 lb. Heavy Duty Two-Post Lift - 16'6" Overall Height


Item Number: CLF15002 - Supplier: CHALLENGER LIFTS INC

Description

Maximize productivity with the 15000 heavy duty 2 post lift. Standard single push button power unit raises lift and a release valve handle lowers it. Arm restraints automatically disengage when lift is fully lowered for easy positioning of arms and securely engage when lift is raised. A single piece adapter organizer rack mounted to the side of the lift column prevents adapters from being misplaced. And an optional air electric workstation provides air for pneumatic tools and electric outlets to plug in work lights or other diagnostic tools.  All Heavy Duty Two-Post Lifts are symmetric lifting and cable equalized.

Features

  • Low profile arms
  • Single point air actuated lock release allows technician to disengage both columns simultaneously.
  • The oversized steel pulley reduces stress on equalization system and provides increased durability.
  • 60" lifting carriage lessens column stress by dispersing the load.
  • The padded overhead shut off system prevents vehicle damage from being raised too high.

Includes

  • CLF10315 Stack Adapter Extension Kit
  • CLF10318  Four Frame Engaging Truck Adapters
  • CLF10317 Four Reducer Bushings for use with CLF10318

Note:  (Part CLF10314 or CLF10318) are REQUIRED when lifting vehicles with frame construction such as trucks.

Warranty

Two years on parts, one year on labor from the date of installation

Product Specifications

  • Minimum Arm Reach: 38-1/2" (4851 mm)
  • Ceiling Height Required: 16'7" (5055 mm)
  • Height Overall: 16'6" (5029 mm)
  • Lift Capacity: 12,000 lbs. (5443 kg)
  • Rise Height: 85-1/2" (2172 mm)
  • Width Overall : 12'10-3/4" (3931 mm)
  • Drive-Thru Clearance: 106-3/4" (2711 mm)
  • Floor to Overhead Switch: 13'11" (4242 mm)
  • Maximum Arm Reach: 62" (1575 mm)
  • Air Supply Requirements: 85 - 115 p.s.i.
  • Motor: 2 hp
  • Voltage (Single Phase Standard): 208 - 230V
  • Speed of Rise: 80 seconds
