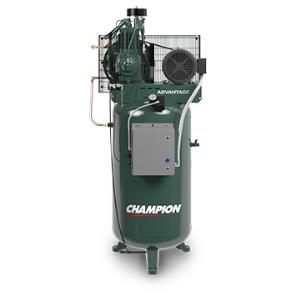

Simplex Air Compressor 7.5 hp - 80 Gal. Vertical 208V/3 Ph

---

Item Number: CHAADVAS17 - Supplier: INDUSTRIAL TECHNOLOGIES AND SERVICE

Description

Fully Packaged/Advantage Air Compressor units offer the most value in a compressor. With a factory mounted and wired magnetic starter, low oil monitor, auto tank drain, vibration isolators, dual control (15 hp and above), and an air cooled aftercooler all as standard benefits, the Advantage Series is the right choice.

Features

• All units are completely assembled, pre-wired, pre-piped and ready to install
• Two stage splash lubricated compressor pumps
• Mounted on ASME coded air receiver with a pressure relief and service drain valve, pressure gauge and vibration isolators
• 1800 r.p.m NEMA rated electric motor
• Centrifrugal unloader for loadless starts
• Automatic start/stop controls, dual control (15 hp and above)
• Low Level Oil/Fuel protection
• Magnetic starter in NEMA rated enclosure
• Automatic Tank Drain
• Factory filled with ChampLub lubricants

 Note: 7.5 HP Simplex Advantage Compressor packages are also available in 208, 230 and 460 Volt,  and 1 phase or 3 phase configurations. Contact your program representative for more information.
**Please confirm power requirements when ordering.

Warranty

Five years on the compressor pump against defects in materials or workmanship under normal use and service. One year on head valves.

Extended warranties are available. For more information please see "CHAEXTWAR" product page.

Product Specifications

• Capacity At 175 P.S.I.G. (acfm): 23.1
• Electrical: 208V/3 Phase
• Dimensions: 33"L x 24"W x 75"H
• Tank Capacity: 80 Gallon, Vertical
• Weight: 635 lbs.
