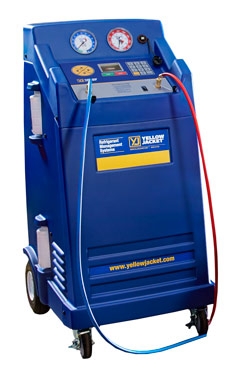

R134a Refrig Mgnt Sys Hybrid - J2788 COMPLIANT

Hybrid Compatible R134a Refrigerant Management System with oil flushing system.
For use with high voltage compressor A/C systems

NOTE: CCI37887 does not include built-in oil injection. Consider using the manual oil injection pump, model CCI77950.

Please refer to Kia TSB (CLI 017) found on www.KiaTechInfo.com.

Description

With the press of a button, you'll get full cycle recover/recycle/evaluate/recharge to bring the vehicle back to factory specifications. The other buttons give you the flexibility and efficiency for specific A/C services. The remote troubleshooting feature allows you to simply connect your system to a PC via USB and your service technician can troubleshoot remotely or at your location.  The unique software program walks the service center step-by-step through the troubleshooting process, allowing the technician to diagnose and quickly recommend a fix. This software also allows you to change the display logo, update the firmware and change models for upgrades.

Features

• Remote troubleshooting
• Full color graphic display
• Advanced user interface and onboard diagnostics
• Automatic scale calibration
• Vacuum hold feature
• High-side or low-side charging
• Fully automatic air purging constantly monitors and purges non-condensibles
• Fast tank refills with no hose changes
• Refrigerant management system that keeps track of information on A/C service work
• Twin 1/2 hp compressors for speed and reliability
• Automatic shut-off for full tank and high pressure
• Heavy-duty shock resistant scale for accurate charging
• Two-stage, 3 c.f.m. vacuum pump for fast, high-efficiency evacuation
• Fully factory tested after a 34-point quality check
• Built-in self diagnostics
• Maintenance reminders for oil and filter changes
• Automatic scale calibration to ± 1/4 oz. exceeds industry specifications for accurate charging every time
• 3-1/2" color-coded gauges with follower needles are easy-to-read even from inside the vehicle
• High impact ABS plastic cabinet with rounded corner and edges to help prevent damage to vehicles
• Large pneumatic tires for ease of mobility
• Free training, set up, and lifetime technical support
• Meets SAE J-2788 standard

Warranty

One year parts and labor

Product Specifications

• Vacuum Pump : 2-stage 3 c.f.m.
• Air Purge: Automatic
• Dimensions: 19.5" W x 29" D x 45" H
• Weight: 219 lbs.
• Recovery Tank: 50 lbs.
• Compressors: (2) 1/2 hp hermetic
• Hour Meter: Yes
• Hoses: 10'
