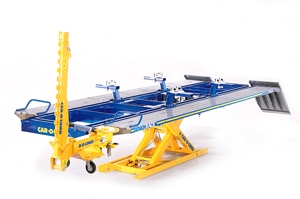

BenchRack™ 6300 Standard Package

Item Number: CAR33907-PKG - Supplier: CAR-O-LINER COMPANY

Description

BenchRack™ systems are designed to hold and lift virtually any type of unibody or full-frame vehicle. Small cars to light trucks, vans and SUVs can be repaired in your shop. You can lift the vehicle when loaded on the ramps or an chassis pads, allowing access to the wheels and wheel-wells. You can avoid interruptions from moving a vehicle between different work stations like for: disassembly, panel alignment and welding. BenchRack's versatility allows for all the work to be performed at one station increasing productivity, saving time and money. A universal collision repair system for both cosmetic and structural repair for any type of vehicle.

Features

  • Designed to hold and lift virtually any type of unibody or full frame vehicle
  • BenchRack increases productivity and efficiency. All repair work can be completed without moving the vehicle.
  • Machine milled platform surface for precision repairs
  • Flexible installation, surface mount, and drive on with ramps or flush in-ground
  • 10 tons of pulling force per draw aligner
  • 9,200 lbs. of lifting capacity
  • Precise information with accurate real-time measuring throughout the process when used with the Car-O-Tronic™ Vision Measuring System and Car-O-Data database
  • Effective holding and clamping with no need for dedicated vehicle specific fixtures when using the EVO™1, 2, and 3 holding and anchoring systems

Includes

  • (1) CAR33907-KIT BR6300 Frame & Tilt Lift with Labels & Manuals
  • (1) CAR33990 B325 Ramp Kit for BR6300
  • (1) CAR46839 T605 Power Unit 220V
  • (1) CARNA90001 Assembled Connector T604 Power Unit Kit
  • (2) CAR30774 Hydraulic Oil
  • (1) CAR30948 Bench Parts (B106/B39BR)
  • (2) CAR31040 Cable Guard
  • (1) CAR34014 Pillar Jack Kit
  • (1) CAR30346 D16 Draw Aligner
  • (1) CAR701 Pump, Hose Assembly
  • (1) CAR205 Ram Adapter
  • (1) CAR930 Double Grab Hook
  • (1) CAR931 3/8" x 8' Chain with 1 Grab Hook
  • (1) CAR934 3/8" x 12' Chain with 1 Hook

Warranty

One year

Product Specifications

  • Pulling Force per Draw Aligner: 10 Tons
  • Platform Length: 21 ft.
  • Platform Width: 46"
  • Platform Width (with ramps attached): 79.5"
  • Minimum Height: 15.7"
  • Maximum Height (Floor to top of platform): 46.8"
  • Maximum Length with Draw Aligner: Bench Length + 44"
  • Maximum Width with Draw Aligner: 90.3"
  • Work Area Size with Draw Aligner on Both Sides: 134.5"
  • Lift Capacity (Maximum vehicle weight): 9,200 lbs.
