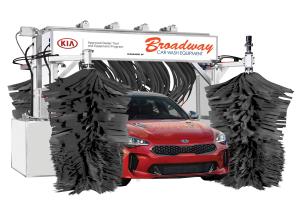

Rollover Cloth Car Wash without Blower, w/Retract Bar

---

Item Number: BRE0789 - Supplier: BROADWAY EQUIPMENT CO

Description

Includes retract bar to pull the curtains out of the way - allowing the operator to see when driving thru.

Features

• Hydraulic system provides easy operation and minimum maintenance. Allows fingertip adjustments for each washing pad.
• Total vehicle coverage - double cycle for cars, SUVs and minivans, and large vehicles up to 84" high.
• Oscillating soft cloth shaker curtain provides fast, gentle scrubbing action that thoroughly removes stubborn road film, dirt and grime - removing wiper blades is not required.
• Quick and easy installation by factory techs.
• Washes with only 24 gallons of fresh water per car - much less than hand washing.
• Requires no harsh chemicals, just biodegradable soap and water (See Service Tips).
• Unit stops and arms open automatically if vehicle leaves before wash is completed.
• Low-maintenance aluminum frame.

Warranty

Two years

Product Specifications

• Compressed air: 90 p.s.i., 5 c.f.m.
• Electrical service: (1) 15 hp motor, 60 amps, 3 phase, 208/230/460 volts
• Minimum space required: 13' w x 28' 1" l x 10' 6" h
• Plumbing: 1" at 40 p.s.i. usage rate 22 g.p.m. standard floor drain
