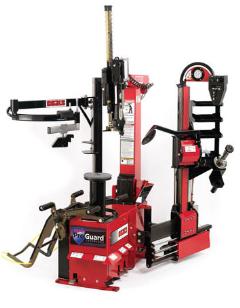

Coats® ProGuard™ Leverless Tire Changer

Description

The Coats® ProGuard™ Leverless Tire Changer features a revolutionary design that reduces the risk of tire or rim damage associated with changing low profile and run-flat tires.

In addition to leverless operation, it has built-in features that take the strain out of tire changing: lifting, prepping, bead loosening, mounting, and demounting can all be done with easy-to-use controls from a single operator location.

Features

• Leverless Power Duckhead® Bead Lifter - The leverless design eliminates traditional tire tools that can mar the surface due to application difficulty or operator error. This results in  a more controlled mount/demount process, flexing the beads just enough for removal or installation.
• Protective Pedestal & Center Lock Design - Whether you're working a regular or reverse mount wheel. the detachable center post locks it securely in position right at the strongest part of the wheel. Plus, a non-marring replaceable cover protects even the most delicate wheels.
• Built-in Adjustable Wheel Lift - Controlled through an easy-to-reach pedal, the automated wheel lift eliminates the strenuous process of manually placing heavy tire and wheel assemblies over the clamping chuck.
• Bead Loosener Disc and Tower - Loosen beads easily and effectively, with unmatched precision. The easy-to-use controls keep the disc at the proper location on the tire - safely away from the wheel. After you clear the rim edge, the disc advances to maintain pressure on the bead, not the sidewall - with the press of a button. You can even lock in your settings for the next wheel.
• Robo-Arm® - This powered assist devise is a must have for mounting run-flat and low profile tires. It effortlessly keeps the top bead in the drop center while servicing even the toughest applications.
• Tilt Back Tool Tower - The tool head and Leverless Power Duckhead® Bead Lifter are mounted to a traditional tilt back tower that stows out of the way  when not in use. It also retains your tool head height settings for the next tire.

 Includes

• 89231515 Duckhead Hook & Tail Bootie Set
• 89231516 Cone Bootie
• 89231517 Table Top Pad
• 89231518 Positioning Pin Bootie
• 85000850 Paste Lube Brush
• 83031335 Positioning Pin Extension
• 8183710 Paste Lube Bucket

 Accessories

• AMM8113390 Bead Lock Tool
• AMM84356851 Crop Center Tool
• AMM89231511 Tire Holder, Match Mount
• AMM89231512 Light Truck Cone (4.8" - 7.5")
• AMM89231513 Light Truck Cone (7.5" - 9")
• AMM89231514 Centerless Wheel Mount
• AMM85606739 Auxiliary Bead Seater Kit

Warranty

 One (1) year parts, six (6) months labor.

Product Specifications

• Wheel Handled: Steel, alloy, high-performance
• Helper Devices: Robo-Arm®, Wheel Lift
• Maximum Tire Diameter: 47" (1200mm)
• Bead Breaker Force: 2.700 lbs. (12,000 N)
• Operating Pressure: 116 - 145 p.s.i. (8 - 10 bar)
• Inflating Pressure Limiting Device Maximum: 50 p.s.i. (3.5 bar)
• Bead Loosening System: Roller disc
• Maximum Wheel Width: 16" (406mm)
• Mount/Demount Mechanism: automatic tilt-back
• Rim Sizes: 10" - 34"
• Wheel Lift Capacity: 175 lbs. (80 kg)
• Rotating Speed: 7 - 14 r.p.m. Forward; 7 r.p.m. Reverse
• Tool Head Offset Adjustment: pneumatic lift, set back, and lock
• Required Air Source: 175 p.s.i., 5 scfm
• Inflation Gauge: Standard
• Power Supply: 220V, 1 Ph
• Net Weight: 940 lbs. (425 kg)
