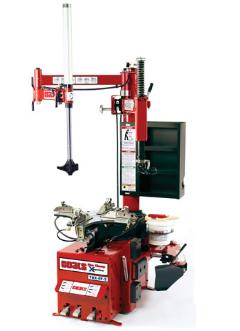

Coats® 70X-Series Rim Clamp Tire Changer, Air Drive

---

Item Number: AMM70XAF3 - Supplier: HENNESSY INDUSTRIES INC

Description

The Coats Rim Clamp® tire changer has become the industry standard due to its legacy of durability, reliability, and upgradability. But today more than ever, we recognize that the needs of all tire dealers are not created equal. Differences in geography, vehicle configurations, and productivity demands have created a need for a wider range of options in our tire service equipment.

The X-Series is an upgraded version of the Coats Rim Clamp® changer you’ve always known and trusted with new accessory and storage packages to fit your needs. You get the same Coats rugged reliability and easy operation, but now we give you more standard features, more options, and more value in a new tire changer.

Features

• Advanced Clamp Positioning

  • Allows for greater control when clamping wheels

  • Position clamps exactly where needed at any point between fully in and fully out

  • No need to wait for the clamps to have to cycle the full range

• Oil Injection System

  • Direct injection more effectively distributes oil to the moving components, ensuring better lubrication to reduce wear and lengthen life expectancy

  • Designed to prevent oil from being wasted during tire inflation

  • 180 fl.oz. container holds over a year's worth of oil for most shops, significantly reducing the need for regular replenishment

• Run flat and low profile capabilities with patented Coats Robo-Arm®

  • Effortlessly keeps the top bead in the drop center while servicing even the toughest applications

  • Cylinder located above arm shaft to maximize force

  • Full 18" of automated vertical stroke without any cumbersome and time consuming manual adjustments required

• Plastic Chassis Storage

  • Durable plastic storage tray keeps your tools right where you need them

  • Helps keep your work area neat and organized

• Foot Operated

  • Traditional pedal activated system conveniently located at the base of the chassis

  • Advanced Hand Bead Loosener Option is available as an option at no additional cost - just order an "H" version. Provides power in, power out, and holds capability to improve control and efficiency
    Operation located at the point-of-use, improving visibility in order to reduce the chance of rim damage

NOTE: The 70X Series Tire Machine can be ordered with various accessory packages that can include the following - call for a qoute on the package that best meets your needs:

• Grip Max Clamps
• Duckhead Roller
• Plastic Mount/Demount Head
• Plastic Wheel Protecting Items
• Tower Storage Cabinet

Includes

• Premium Accessory Set - includes the Extended accessory set (lift tool, lube bottle and swab, steel 3-position clamps: patented laminated Grip-Max® clamps (maximize grip with less metal-to-metal risk), extra grips, plastic mount/demount head, bead loosener shoe socks and lift tool socks, paste lube and paste lube bracket with applicator brush) plus an upgraded high-spoke mount/demount head and Duckhead® roller. Also includes premium power storage cabinet which is perfect for keeping all your tools right on hand.

Options

AMM8183120 Inflation Guard Kit
AMM85607986 28" Grip Max Plus Clamp Kit
AMM85000440 Wheel Lift

Warranty

Three (3) year limited parts warranty, 6 months labor.

Product Specifications

• Rim Diameter: 6"-22" External; 8"-24" Internal (28" with optional clamps)
• Maximum Tire Diameter: 50"
• Maximum Rim Width: 14"
• Wheels Handled: Steel, Alloy
• Drive System: 1.5 HP Air
• Mount/Demount Mechanism: Swings away for better access
• Bead Loosening System: Foot Controlled
• Helper Devices: Robo-Arm® (18" of Automated Vert Stroke)
• Inflation Gauge: 0 to 60 p.s.i.
• Air Source: 110 to 175 p.s.i., 5 HP Compressor, 14 to 15 s.c.f.m. @ 150 p.s.i.
• Chasis Footprint: 49"W x 48"D x 85"H
• Shipping Weight: 700 lbs.
