1250 Wheel Balancer

Description

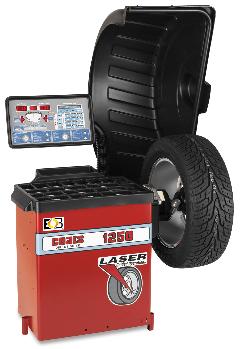

The new 1250 model features eight balancing modes, including static, dynamic, four alloy options, behind the spoke and patch balance. The 1250 features an interactive user interface that is simple to use. The interface gives visual cues, provides step-by-step instructions and automatically calculates and displays residual static imbalance to solve one of the most common causes of vibration-related comebacks. In the "behind the spoke" weight placement mode, the system even alerts the user to optimal spoke selections to achieve a balanced assembly with the minimum amount of corrective weight.

The 1250 uses Laser Guided Technology™ to make Tape-A-Weight® placement precise. The laser guidance system pinpoints the spot where a Tape-A-Weight® is needed, and the automatic stop-on-top feature eliminates rotation searches for placement cues. The revolutionary system allows the technician to place the Tape-A-Weight® by hand, yet still achieve a one-spin balance.

The balancing cycle on the 1250 takes about five seconds - with improved ergonomics that eliminate unnecessary motions. The 1250 automatically measures the distance and diameter of wheels from 8 inches to 30 inches in diameter and can accommodate wheel assemblies with a 44-inch maximum diameter. The 1250 comes with a 1.5 HP direct drive motor for superior durability and features a high-capacity weight tray.

The 1250 model is available with the choice of three accessory kits - basic, extended and premium - so that the user can be more productive over a wider range of applications.

Features

• Laser Guided Operation eliminates error by displaying exact Tape-A-Weight placement and behind the spoke locations of wheel balancing weights.
• Control Panel with easy to read position indicators and an integrated VFD display delivers ease of use & promote proper balancing techniques.
• Direct Select any of eight balancing modes offering several alloy options, plus patch balance.
• Simultaneous display of static & dynamic data identifies any excess residual static imbalance.
• Easy Behind the Spoke Weight Placement helps maintain a “clean” look on custom wheels.
• 1.5 HP Direct Drive Motor delivers longevity with no belts to slip or pulleys to wear out.
• Automatic offset and diameter data entry increases productivity and provides accuracy for single spin balances .
• Direct TAW Placement and Laser Guided Operation eliminates guesswork, resulting in 1-spin TAW balances.

Important: You must order a vehicle coverage adapter kit with the 1250.

Warranty

Three (3) years limited parts warranty, 6 months labor.

Product Specifications

• Balancing Modes: 8
• Max. Tire Wt.: 160 lbs.
• Accessory Storage: Peg Kit
• Shaft diameter: 28mm or 40mm (via selected accessory kit)
• Resolution: Degrees: 1.4
• Tire Diameter: Up to 44"
• Power Requirements: 220v AC, 1P, 60Hz (8121250) - 220v AC, 3P, 60Hz (812125002)
• Shaft length: 8-5/8"
• Accuracy : 0.1
• Footprint: 57"W x 50"D
• Resolution: Oz.: 0.01
• Shipping Weight: 625 lbs.
• Rim Width: 2" to 20"
