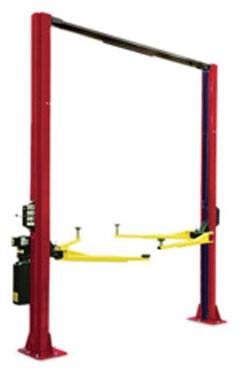

10K 2-Post Wheel Lift

Item Number: 42010CA14 - Supplier: JOHN BEAN

Description

2-Post Automotive Lifts give you the highest capacity with the best quality, features, and versatility at the most reasonable cost of any North American manufactured lift.

Features

  • Steel cable pulleys with oil impregnated iron bushings reduce the need for maintenance and increase life of lift
  • Mechanical safety locks at 17 operating positions
  • Dual-function micro-switch activates vehicle height safety rod and increases life span of drive motor and cylinders
  • Overhead beam reinforces lift structural integrity - 12' or 14'
  • Stack pad style lift works with both cars and trucks (3" and 6" adapters included)
  • Asymmetric configurations come standard with three-stage front arms providing maximum extended and retracted reach

Warranty

OEM Program three (3) years on parts and labor.

Product Specifications

  • Capacity: 10,000
  • Symmetric Or Asymmetric: Asymmetric
  • Overall Width: 140¾"
  • Overall Height: 168"
  • Width Between Columns: 106¾"
  • Maximum Lifting Height*: 79½"
  • Under-Bar Clearance: 164"
  • Drive-Thru Width: 87½"
  • Shipping Weight: 1,620 lbs.
  • Lifting Time: 45 sec.
